KISAN DRONE (Beta)

  • World’s Smallest Spraying Drone
  • Sturdy body made of Carbon Fiber Air Frame and 6061 Aluminum.
  • Precision Spraying System
  • PX4 based Autopilot
  • Full stack software for Spraying Service
  • 4 Nos Spraying Nozzles
  • Upto 15 min Flight Time
  • Li-Po Battery pack
  • All Up Weight Under 2Kgs including 500ml liquid payload

₹200,000.00

Be among the first to tap into the spraying service opportinuity

Own the most advanced aerial spraying solution in the world

Micro Sized

Strong Built

Precise
Control

Autonomous Spraying

Business Ready

3rd Party Integrations

10000 years of agriculture, a legacy in need of a catalyst

With less than 5 acres of average farm land, farmers in India struggle to apply modern farming techniques and resort to using antiquated methods.

Precision Vs Mechanized Vs Manual Spraying

Aerial spraying is a technique in which a crop is sprayed with chemicals from above. This means that the chemicals are applied in an efficient way, without occupying any space on the ground.

As the foremost company in India working with a drone-centric approach to precision agriculture, we have developed an end-to-end aerial spraying solution.

What is KISAN DRONE?

KISAN DRONE is a business friendly end-to-end spraying solution, the open framework allows it to integrate it with other automation solutions and be part of them or work all by itself.

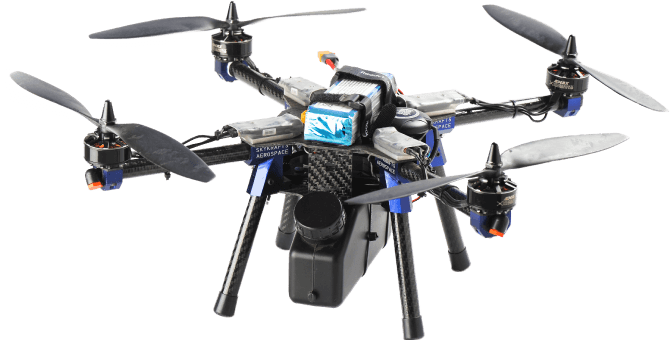

KISAN DRONE is world’s smallest spraying drone that makes spraying easier and more precise. It integrates a precision spraying and localization system to sensors and autopilot system, which makes it the most dependable aerial spraying solution in the market.

KISAN DRONE has been developed to be a better spraying solution for a number of spraying scenarios. It can spray crops without manual labor, or in hard-to-reach areas.

Keeping up with the prevailing laws can be a daunting task, leave the heavy lifting to us

Build your business with a location and situationally aware spraying system

Our flight stack are updated frequently, benefit from the most up to date regulatory stack

Whether you’re a spraying service provider, a plantation manager or vineyard owner, KISAN DRONE is the perfect way to help you get your spraying job done. You can adjust parameters of topology, crop and the drone with our smartphone app, making your work easier while achieving optimal spraying

Features

Localized variable rate spraying

The micro category spraying drone can get very close to the canopy of a crop or plantation and apply a precise amount of chemical.

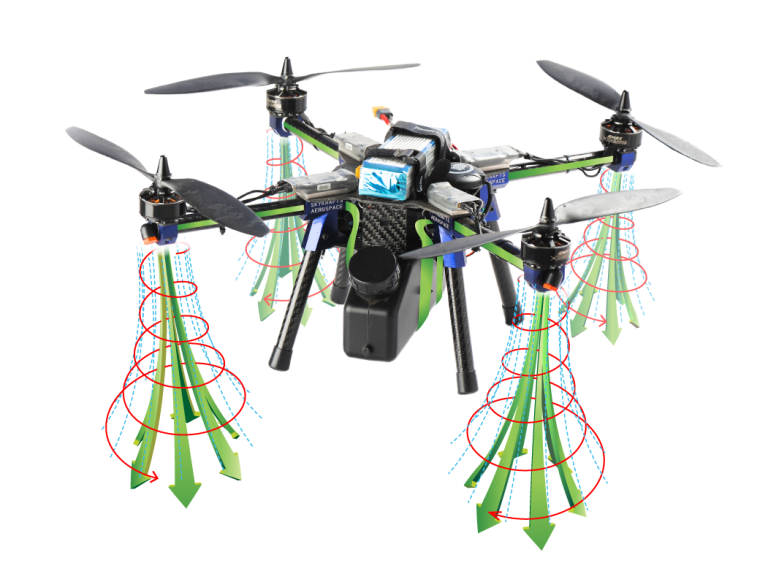

KISAN DRONE has spraying nozzles under each propeller allows it to propagate and scatter the droplets evenly through the plant foliage. This improves efficiencies of pesticide and will result in overall reduction in the amount of pesticide applied. The onboard sensors allow the drone to follow the terrain and also tag along the crops.

Spray-on-demand

Simple or complex, Tall or short, big or small you are covered. On demand spraying, whenever or whereever it is needed

Open framework

Open framework allows easy integration witth 3rd party AgTech and automation solutions

GPS

Locational awareness helps factor geographic and man made structures

Autonomous spraying

Repetative spraying can get quite mundane, why put a human for a machine’s job. Autonomous operations allows you to spray throught the crop’s lifetime without too much effort

Precisely controlled

Variable rate spraying combined with the ability to precisely control the quantum of application.

Fast turnarounds

Quick swap batteries and easy refil tanks reduce the downtime between recharges and refils

KISAN DRONE has been designed from the ground up to be a Spraying-As-A-Service offering, that can fit into the complex realities of Indian agriculture.  It also opens up Indian agriculture market to precision agriculture methodology, that has unique challenges due to highly fragmented land ownership and incoherent farming practice.

KISAN DRONE is efficient and cost effective solution for farmers to combat pests and diseases in their crops. It’s a safe and efficient way to control harmful fungi, insects, and plant diseases.

Specification

The purpose built KISAN DRONE end to end spraying solution include ground station, mobile apps, web apps and analytics and billing software.

Inside the most advanced spraying systems

Mechanical

Airframe Material

Carbon Fiber, 6061 Aluminum and Engineering Plastics

Aircraft Configuration

Quadcopter X

Landing Gear

Fixed

Propeller

12″ Nylon or Carbon infused Nylon

Motor to Motor

600 mm Diagonally

Height

330 mm

Weight

1950 Gms with payload

Electronics

Autopilot

PX4 derivative

Sensors

Accelerometer, Gyroscope, Magnetometer, Barometer, LIDAR, Image

Interfaces

USB, CAN, SD

Positioning

GPS and Compass

Battery

 Lithium Polymer

Radio

Telemetry Range

2 Kms to 5 Kms

Radio Control Range

2 Kms to 5 Kms

Performance

Flight time

Up to 15 mins

Maximum speed

10 Mts per second

Maximum flight range

5 Kms

Spraying Swathe

1 Mts and 2 Mts above the crop canopy

Spraying rate

50 ml to 120 ml per min Adjustable

Droplet size

80% of the droplets are 150 microns

Spray Coverage per charge

1 Acre

It is versatile and has the ability to handle different types of crops such as orchards, vineyards, plantations, cash crops, vegetables, and grains. KISAN DRONE can work as a swarm by coordinating with other drones in order to cover large swaths of land.

Flowers and vegetables

Tea Plantation

Vineyard

Beyond spraying, the integrated GPS and the companion software allows KISAN DRONE to avoid overlaps in spraying, keep up with the weather trends, fly and spray with the optimum speed and rate over the corners and boundaries to reduce losses due to drift.

The drone can adapt to static variables such as topology, dynamic variables such as weather and to crop specific variables. It can also handle sophisticated chemical compositions that have increased in complexity over time.

Every Drone has a story

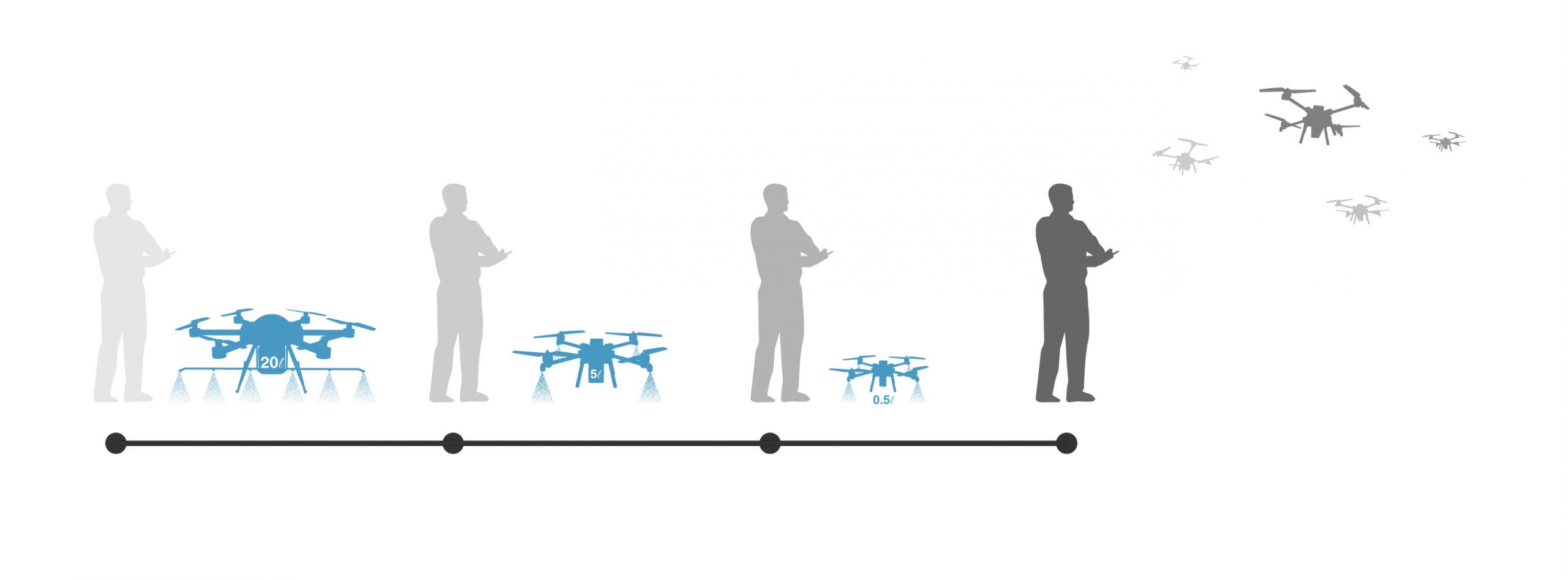

What began as a side project, to build a 20 liter spraying drone, quickly became an object of focus and an important problem four us to solve. In the quest to address the spraying needs of indian farmers, who have unique challanges such as fragmented land holdings and use of manual labour to spray chemicals, we observed that using large drones to aerially apply chemicals in such an enviernment is impracticle.

We took a bottom-up approach to applying chemicals. Imagine if we could apply a precise amount of liquid at a specific location on a predetermined time. That’s precision farming so to speak, but a technique that has been elusive to the Indian farming community.

KISAN DRONE is will continue to evolve and become a precise solution of appliying chemicals and also a profitable business opportinuity

What is the maximum range the KISAN DRONE can cover?

Total weight including the payload is 2 kgs and it can carry a payload up to __ kg.

What is the maximum range the KISAN DRONE can cover?

The radio controller has a range of up to 1 km.

What is the battery life? For how long the drone can fly?

One fully charged battery can hover the drone for up to 15 minutes.

How long does KISAN DRONE take to spray 1-acre of land?

The capability of covering 1-acre land depends on the volume of pesticide being sprayed. Assuming ultra-low volume spraying density, the KISAN DRONE can spray 1-acre land in about 60 minutes.

Can KISAN DRONE spray on all types of crop vegetation?

Yes,The small and compact design of KISAN DRONE makes it possible to spray crop vegetations with difficult reachability.

What and how much is the warranty period for KISAN DRONE?

The warranty period for KISAN DRONE is 1 year (excluding batteries). The warranty does not cover damages caused due to incidents/accidents.

What if the KISAN DRONE loses connection or goes out of range?

A failsafe parameter is set up in KISAN DRONE that commands the drone to return to its home position in such cases.

Are the parameters of Flight Controller reprogrammable?

Yes,The Pixhawk PX4 Flight Controller can be fully customized with drone software such as Mission Planner and QGroundControl.
